Cross RC Crawling EMO XX2 1/5 Brushless RTR

CROSSRC EMO XX2/XXL2 1:5 Large – Scale Pickup RC Truck

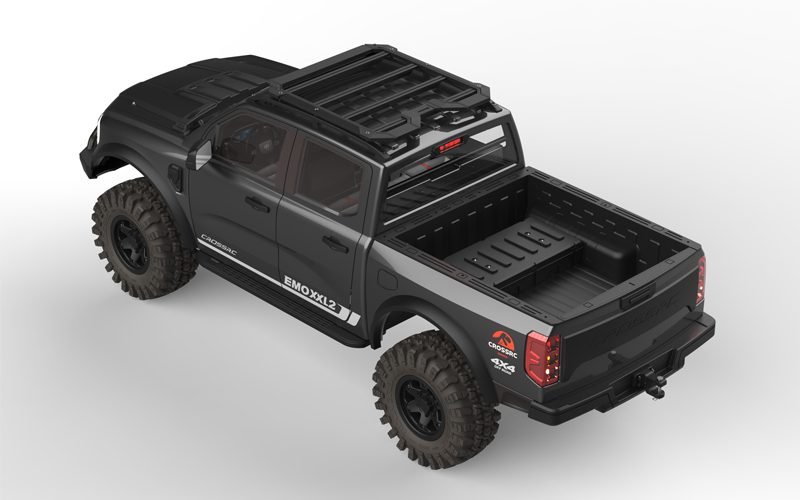

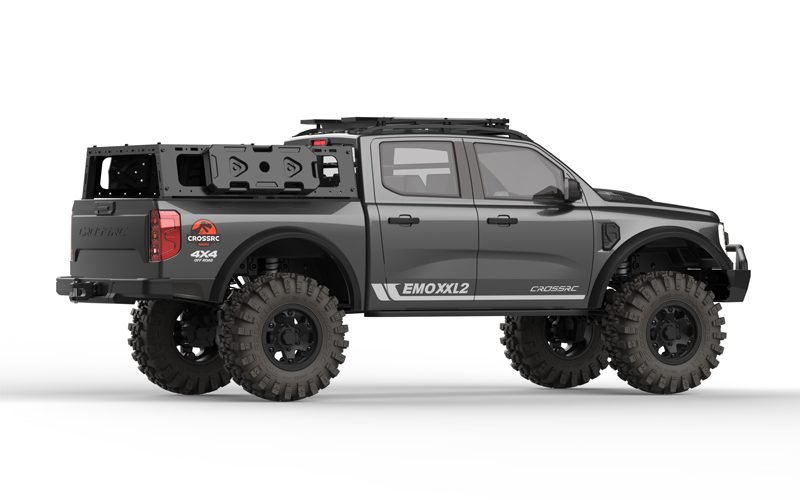

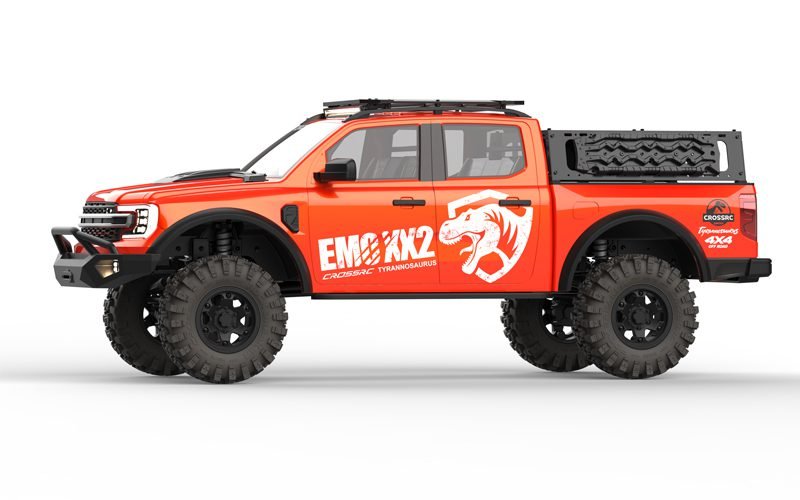

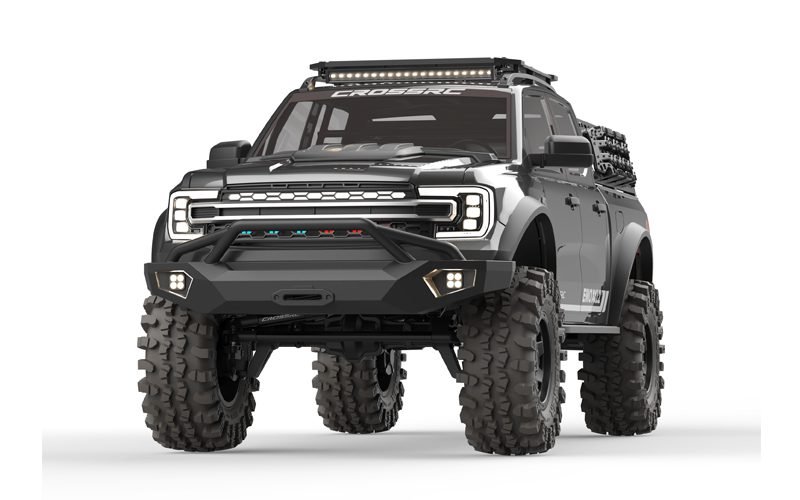

Overview: Both EMO XX2 Tyrannosaurus 4×4 and XXL2 Super Tyrannosaurus 6×6 come in multiple versions including ARTR, dual-motor, and brushless. The former features a nylon solid cargo box and other configurations to present 4×4 power and simulated structure, while the latter showcases excellent 6×6 performance with an engineering plastic combined flatbed cargo box and more. Both are equipped with high-quality PC shells, 2.5mm steel stamped simulation frames, and powerful transmission and suspension systems.

I. Basic information

• Brand/Model: CROSSRC EMO XX2
• Scale: 1/5
• Version: Brushless version
• Color: Orange/Gray

II. Specification Sheet

Electrical Components

• ESC (Electronic Speed Controller):

1. 1. EMO XX2 Tyrannosaurus 4×4
      1. ARTR version: No ESC;
      2. Dual-motor version: Dual Hobbywing 880 (2-4S);
      3. Brushless version: Hobbywing 150A (3-6S Brushless).

• Motor:

1. 1. EMO XX2 Tyrannosaurus 4×4
      1. ARTR version: No motor;
      2. Dual-motor version: Dual high-power 775 brushed motors;
      3. Brushless version: Hobbywing 4985 (1650kv Brushless).

• Steering Servo:

• • EMO XX2 Tyrannosaurus 4×4 and EMO XXL2 Super Tyrannosaurus 6×6

1. 1. 1. ARTR versions: No steering servo;
      2. Dual-motor and Brushless versions: 70KG 7.4V High-Voltage 5-channel large steering servo.

• Remote Controller:

• • EMO XX2 Tyrannosaurus 4×4 and EMO XXL2 Super Tyrannosaurus 6×6

1. 1. 1. Dual-motor and Brushless versions: Little Flying Elephant 6-channel 2.4G remote controller.

• Shifting Differential Servo: All versions of EMO XX2 Tyrannosaurus 4×4 and EMO XXL2 Super Tyrannosaurus 6×6: 3 pre-installed factory 25KG 7.4V High-Voltage standard servos.

• Lighting: All versions of EMO XX2 Tyrannosaurus 4×4 and EMO XXL2 Super Tyrannosaurus 6×6: Linked high-power light set with strobe mode.

Main Body

• Car Body Shell: All versions of EMO XX2 Tyrannosaurus 4×4 and EMO XXL2 Super Tyrannosaurus 6×6: High-quality PC finished shell.
• Rear Cargo Box:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): Nylon solid cargo box;

• Chassis Frame: All versions of EMO XX2 Tyrannosaurus 4×4 and EMO XXL2 Super Tyrannosaurus 6×6: 2.5mm steel stamped simulated chassis frame.

Transmission System

• Large Gear:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): 63T nylon silent gear;

• Transmission Gears:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): Full steel cut gears;

• Bevel Gears (Large & Small):

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): Full steel cut gears;

• Central Drive Shaft:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): Steel universal joint metal drive shaft;

• Axle Half-Shafts:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): Front axle steel CVD universal half-shafts + Rear steel straight half-shafts;

• Bearings:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): Full-car ABEC3 high-speed bearings;

Suspension System

• Pull Rods:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): 10mm aluminum alloy chassis pull rods + Steel rear balance links;

• Shock Absorbers:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): 26mm large-diameter CNC hydraulic shock absorbers;

• Shock Springs:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): Standard climbing posture springs;

• Suspension Protection:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): CNC upper pull rod mounting point reinforcement + Steel lateral track bar upper mounting point reinforcement;

• Steering Protection:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): CNC steering buffer system;

Tires & Wheels

• Tires:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): ROCK BREAKER “Rock Splitting Roar” MT tires (Rock Crawling Tires);

• Wheel Rims:

1. 1. EMO XX2 Tyrannosaurus 4×4 (all versions): Nylon tire-clamped rims;

Included Tools

• All versions include: 3 CROSSRC CNC model-specific hexagon socket screwdrivers (1.5mm, 2.0mm, 2.5mm), 1 M6 wheel rim disassembly socket, and 1 remote controller lanyard.
