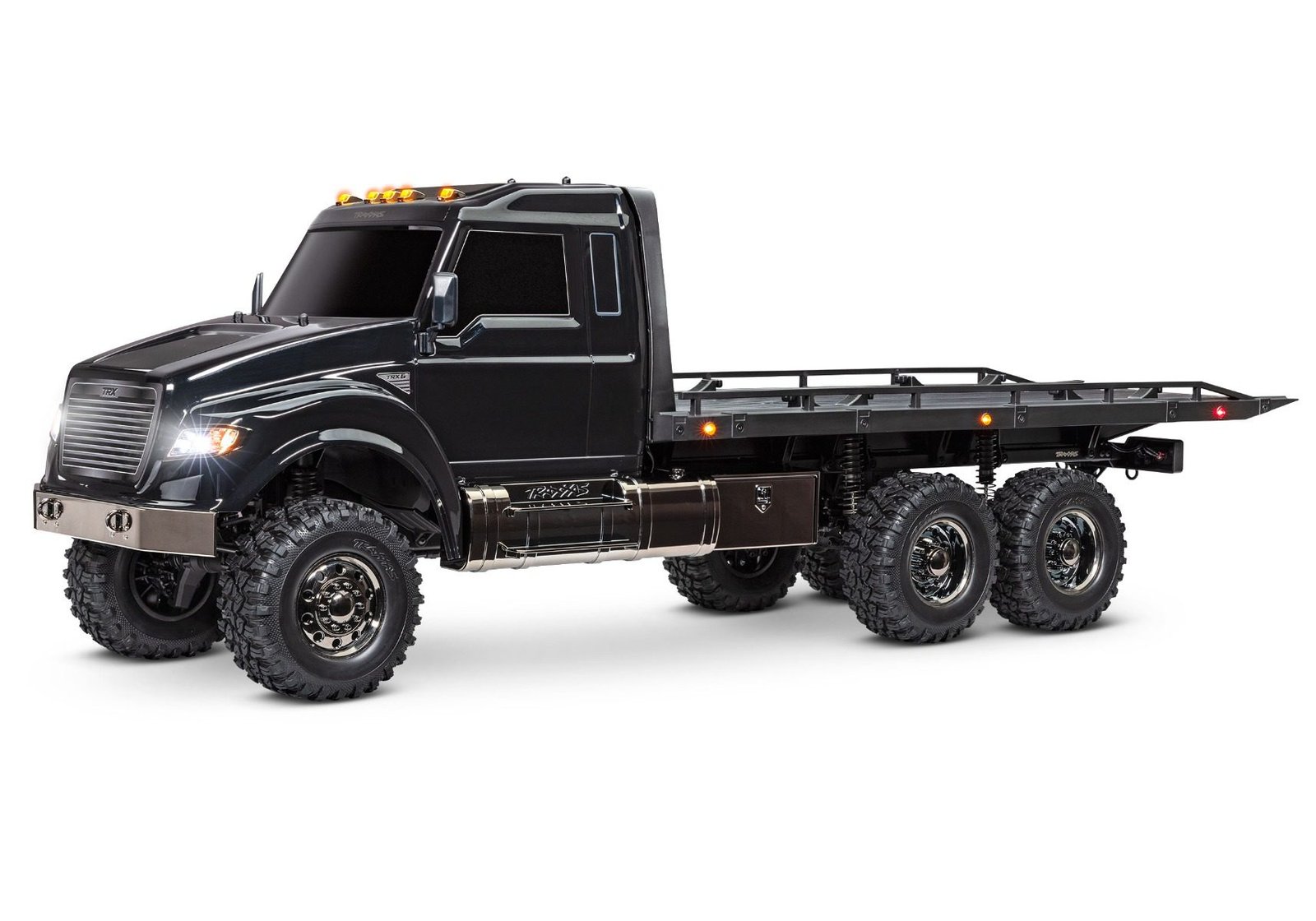

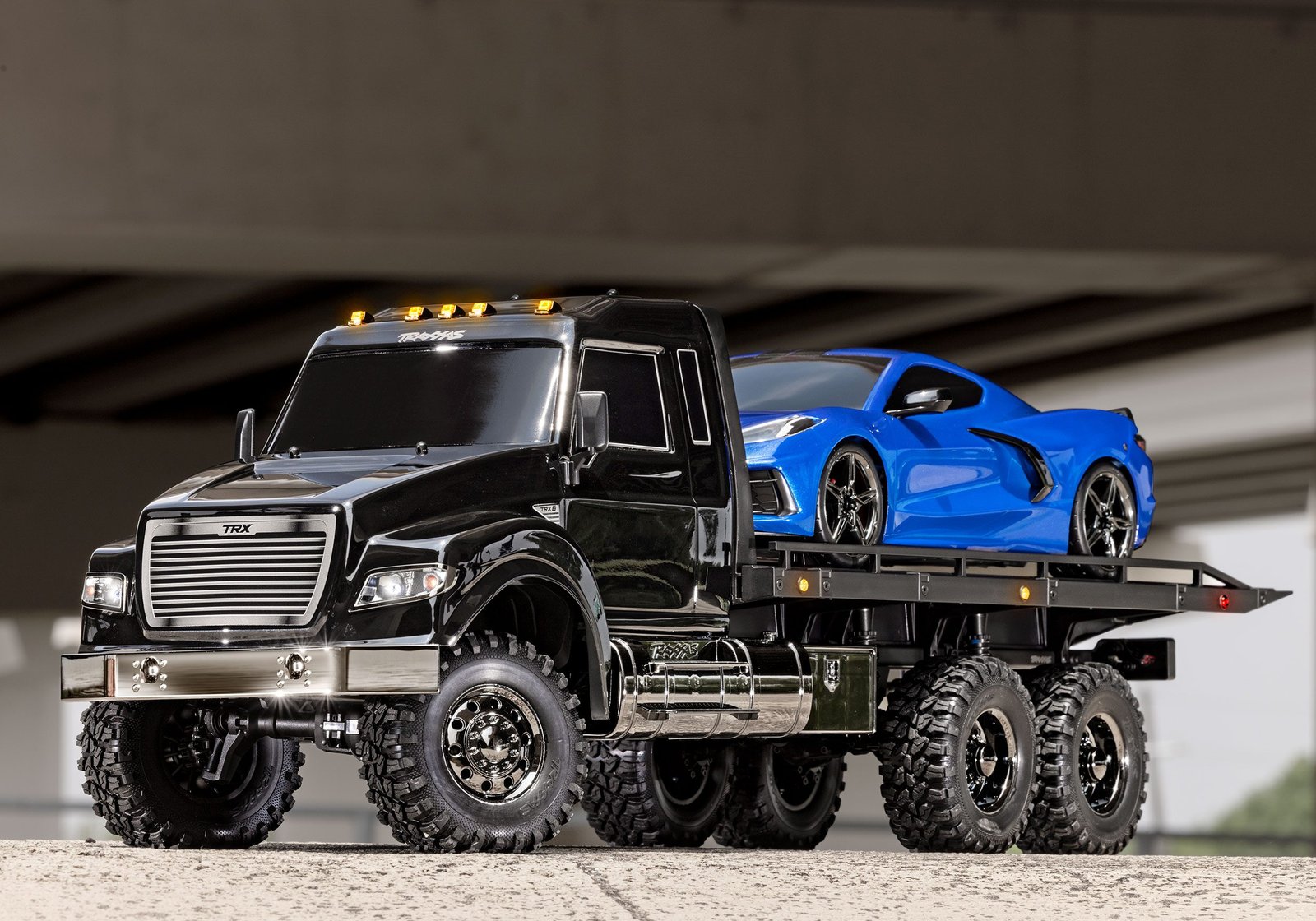

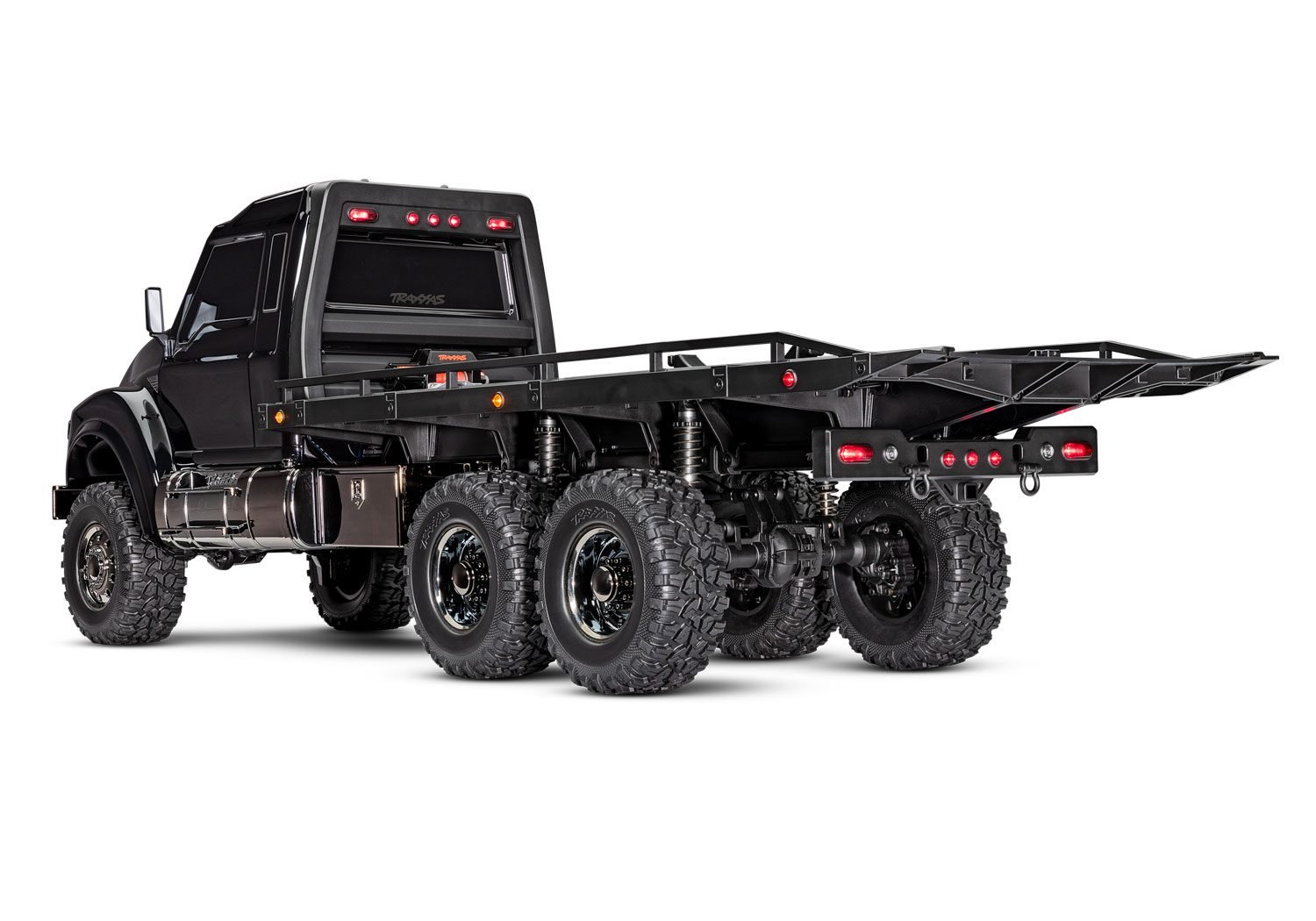

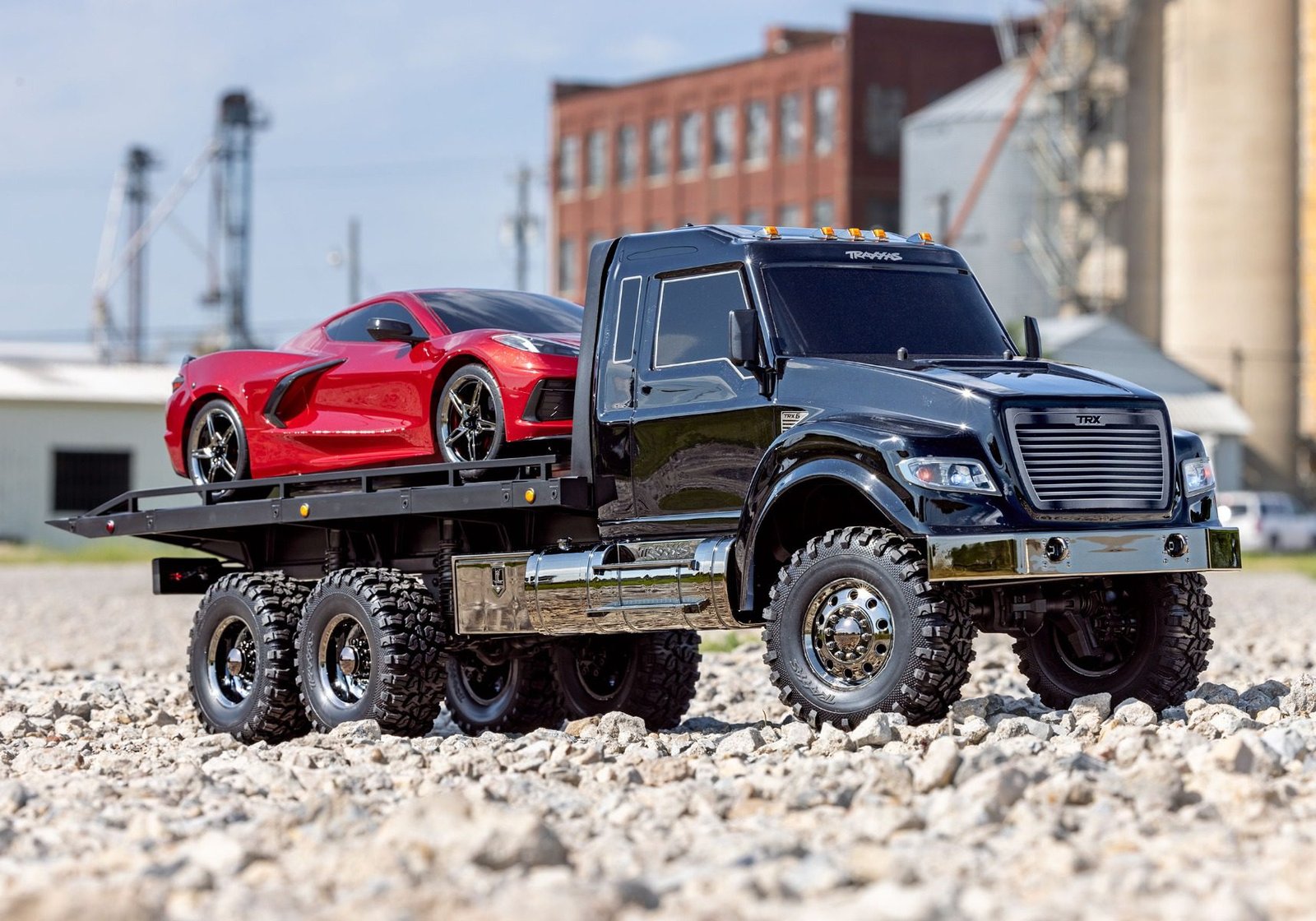

Vehicle Specs
- Length (overall): 37.5 inches (953 mm)
- Length (chassis): 34.0 inches (863 mm)
- Front Track: 9.8 inches (245 mm)
- Rear Track: 9.8 inches (249 mm)
- Ground Clearance: 3.14 inches (80 mm)
- Weight: 10.7 pounds (4.83 kg) Gross Wt: 6Kg
- Box Size: 100 x 29.5 35cm
- Height (overall): 11.9 inches (303 mm)
- Wheelbase
- (front & intermediate axle): 18.6 inches (471 mm)
- Wheelbase
- (front & rear most axle): 23.7 inches (603 mm)
- Approach Angle: 60°
- Departure Angle: 55°
- Breakover Angle: 57°
- Front Shock Length: 3.54 inches (90 mm)
- Rear Shock Length: 3.54 inches (90 mm)
- Front Wheels: 2.2 x 1.02 inches (56 x 26 mm)
- Rear Wheels: 2.2 x 1.02 inches (56 x 26 mm)
- Battery Tray: 158.75 L x 47 W x 23/26 mm H
- Front Tyres: 4.64 x 1.89 inches (118 x 48 mm)
- Rear Tyres: 4.64 x 1.89 inches (118 x 48 mm)
- Hex Size: 12 mm
- Speed Control: XL-5 HV
- Motor (electric): Titan® 21T Reverse Rotation
- Transmission: 2-speed High/Low, Remote Shifting
- Gear Pitch: 32P
- Differential Type: 4 Gear, Remote Locking
- Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Cross members
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft-Driven 6WD
- Steering: Chassis Mounted Servo
- Servo: 2075X Metal Gear
- Transmitter: TQi™ 2.4GHz 4-Channel Transmitter
- Receiver: 6533
- Skill Level: 1
ESC Specs
- Type: High-torque brushed motor
- Size: 550
- Weight: 390g (13.76oz)
- Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
- Turns: 21T reverse rotation
- Voltage: 16.8V
Motor
- Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
- Case Size: 1.23” W x 2.18” D x 1.04” H
- Weight: 2.6oz (74g)
- Motor Limit: 21-turns (550 size)
- On Resistance Forward: 0.004 Ohms
- On Resistance Reverse: 0.004 Ohms
- Peak Current – Forward: 100A
- Peak Current – Reverse: 100A
- Braking Current: 60A
- Continuous Current: 18A
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Power Wire: 14 Gauge / 5”
- Input Harness Wire: 26 Gauge / 14.5”
- Transistor Type: MOSFET
- PWM Frequency: 1700Hz
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal Shutdown
- Profile selection:
- Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
- Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
- Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
- Single-button setup: Yes, Traxxas EZ-Set®
