Specification:
Manufacturer: Double E
Item Condition: New, Painted and Assembled
Material: Metal, Plastic
Scale: 1/14
Weight: About 10kg
Size: About 61x20x22cm
Remote Control Distance: ?Y50 meters
ID: DoubleE-E111-003-EC160E-HExcavator-RTR-YGY

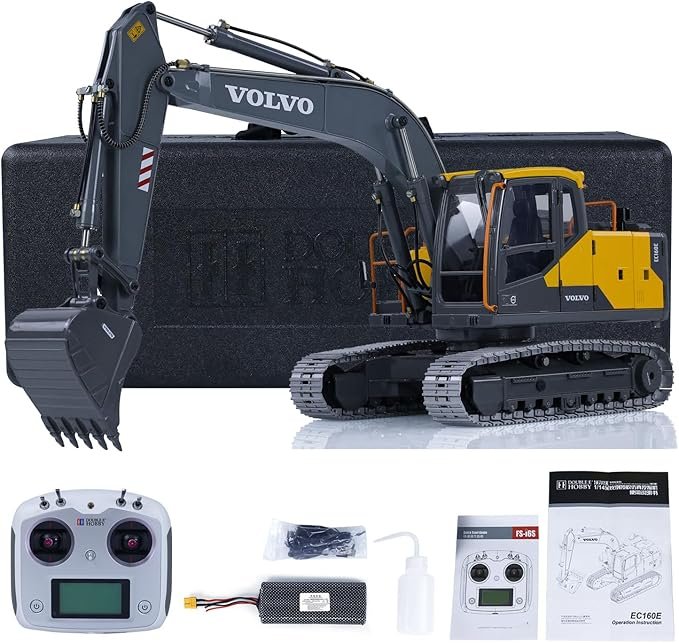

The Package Includes:

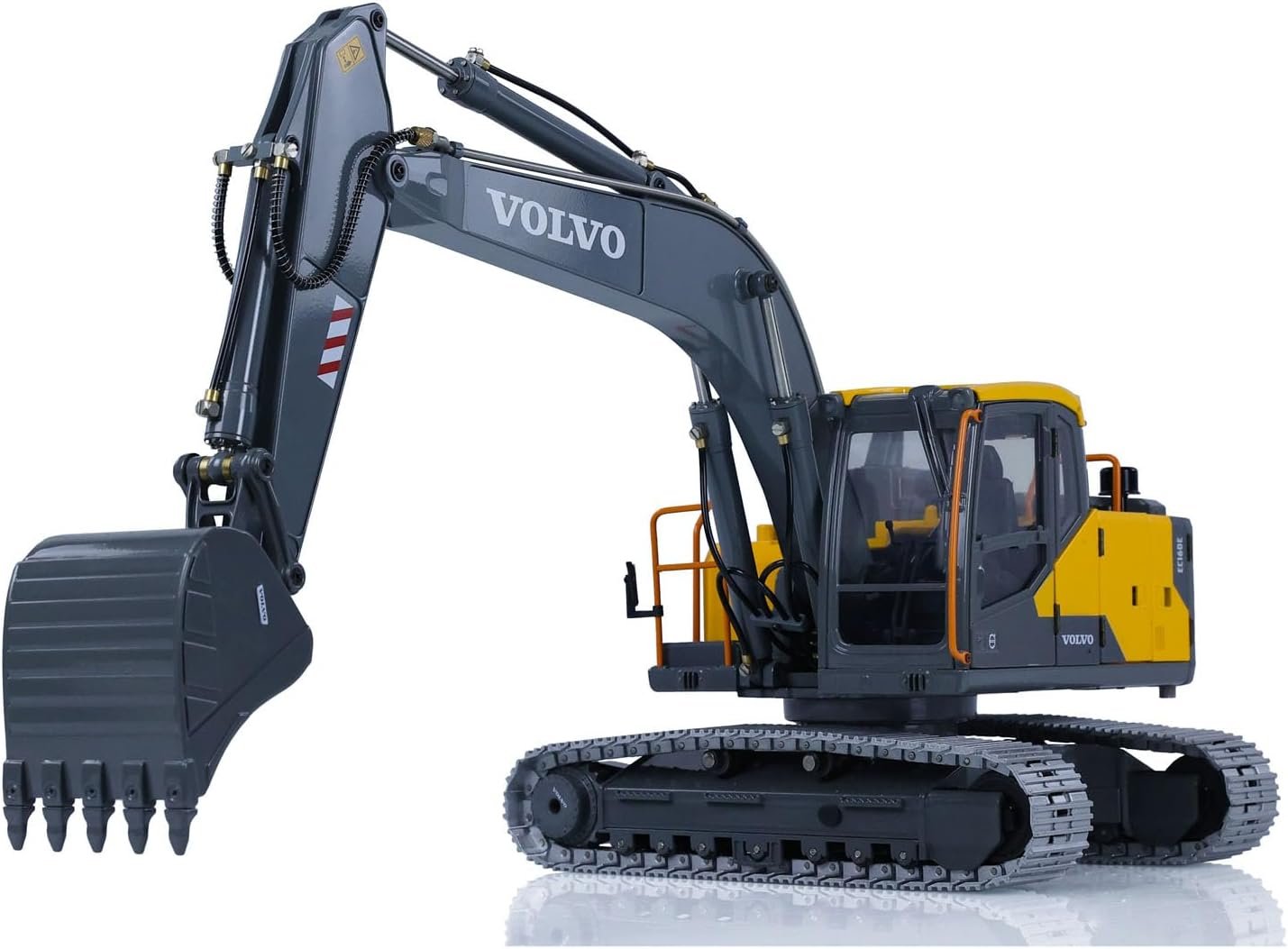

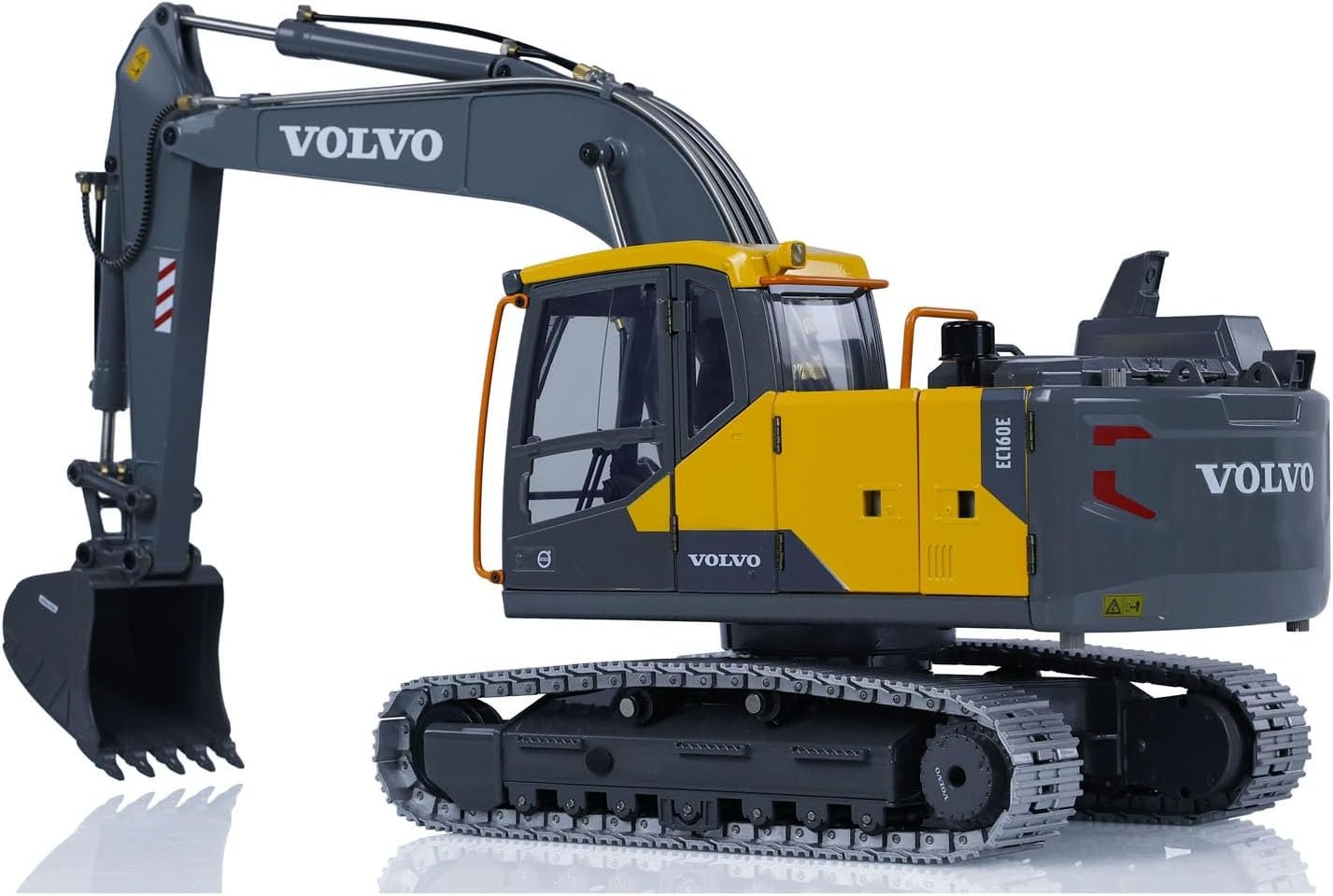

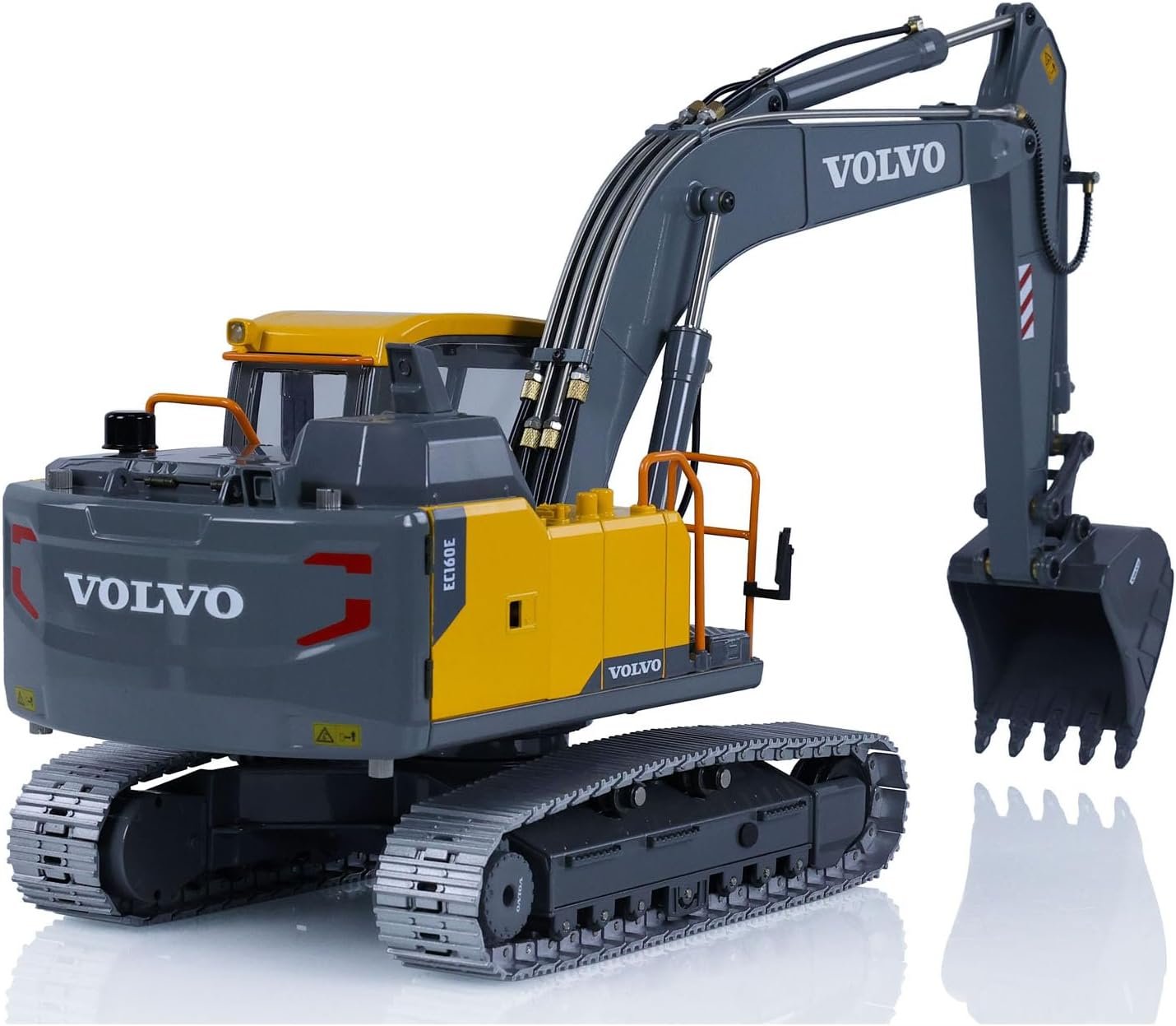

1/14 RC Hydraulic Excavator Model
ESC
Motor
Servo

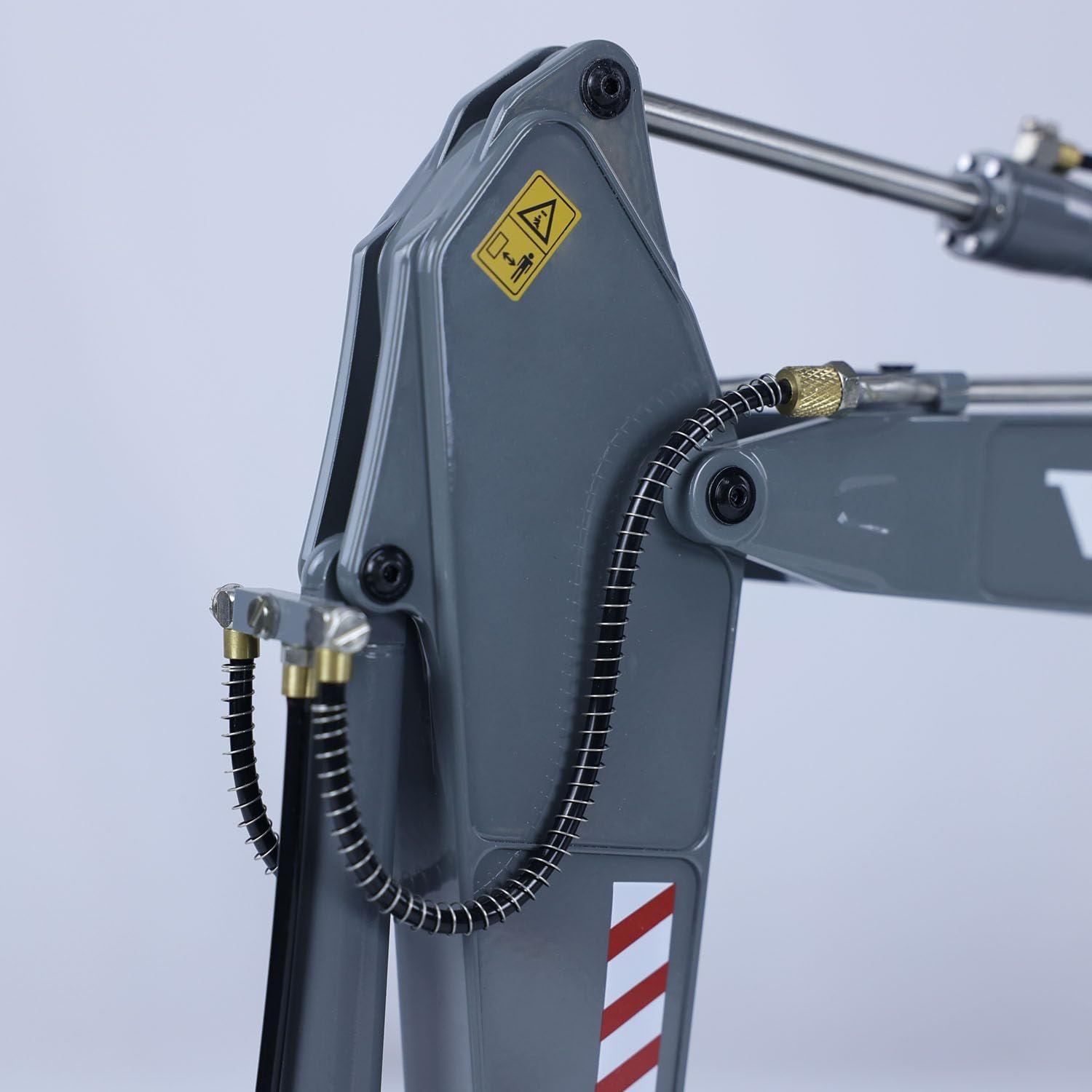

Hydraulic System
Light System
Remote Controller and Receiver

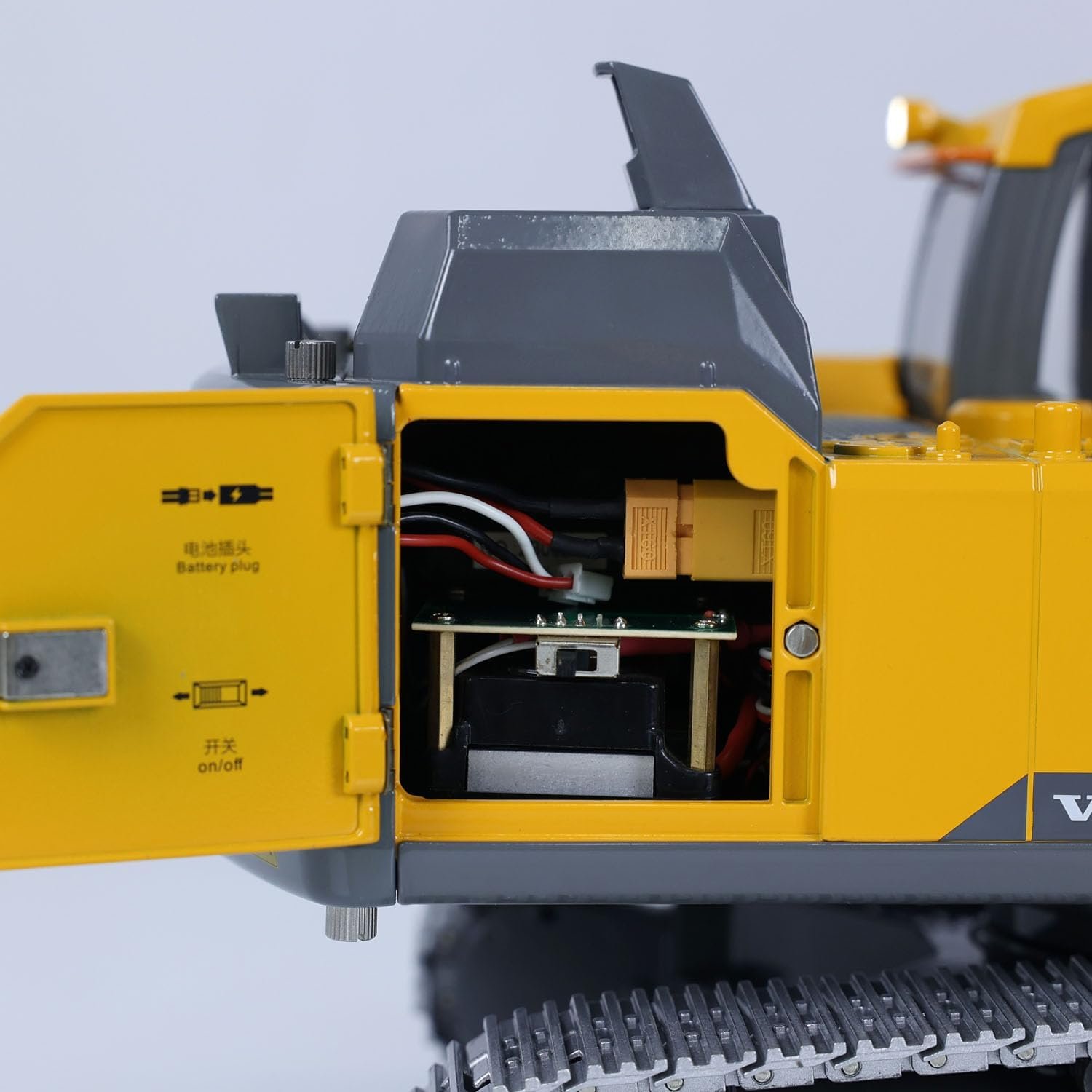

Battery
USB Charging Cable
The Package Does Not Include:
Sound System
Hydraulic Oil
Features:
1. All-metal simulation electrostatic spraying.
2. High-power hydraulic system.
3. Brushless hydraulic pump motor configuration.
4. Real machine simulation structure angle.
5. High-power hydraulic system with a pressure of 4 Pa or above.

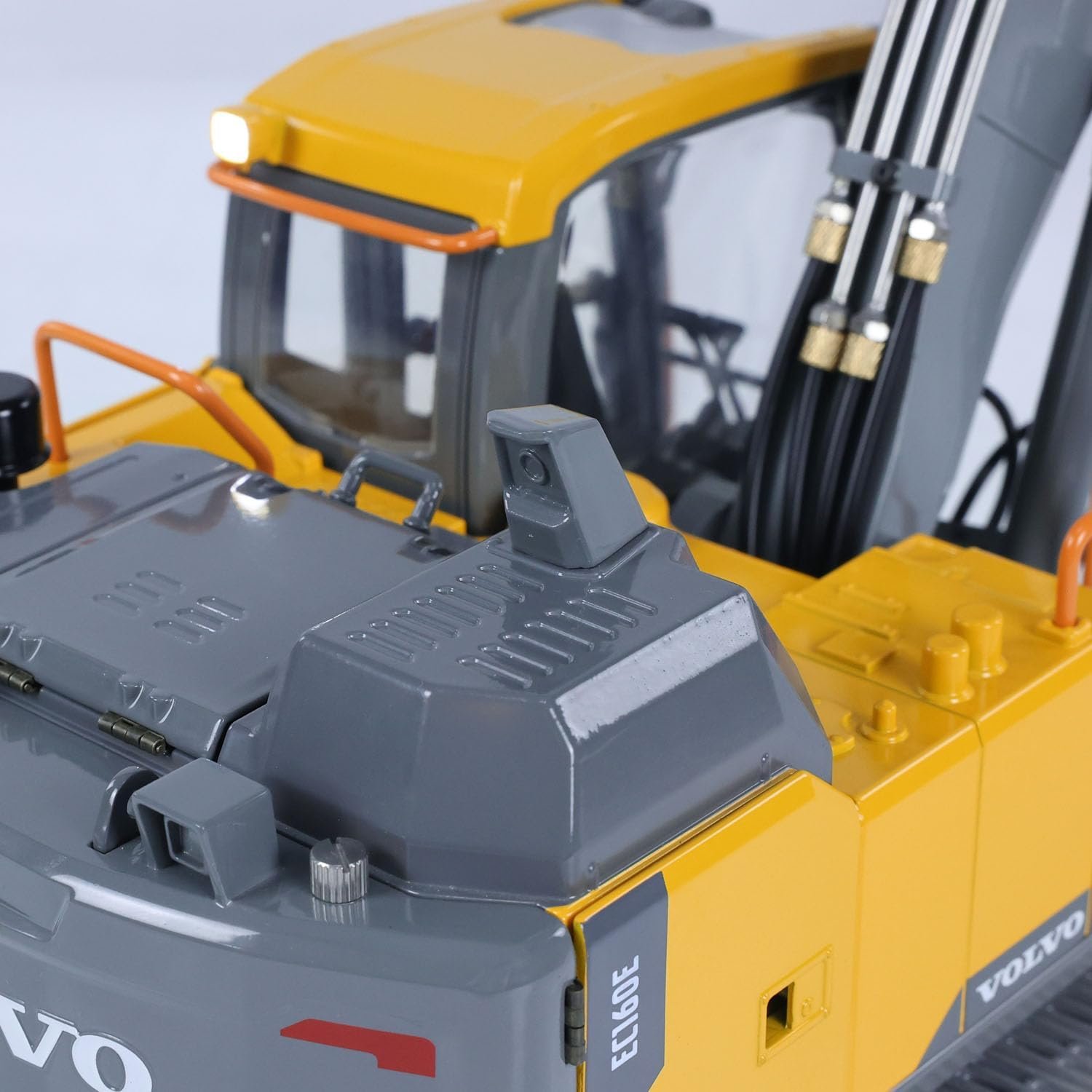

6. The door of the cabin is openable
Technical Parameters:
Excavation depth: 28cm
Cab height: 12cm
Functions: Forward, backward, left turn, right turn, rotation, boom up/down, arm up/down, bucket up/down, lights, etc.
Maximum walking speed: 0.8 km/h
Maximum climbing angle: 45??
Straight-line deviation during walking: 5?? offset for every 6 meters of forward movement
Maximum angle of bucket elevation: 130??
Fastest cycle for bucket elevation/lowering: 1 second
The maximum weight the bucket can bear: 13kg
Maximum angle of arm elevation: 110??
Fastest cycle for arm elevation/lowering: 1.0 second
The maximum weight the arm can bear: 9kg
Maximum angle of boom elevation/lowering: 87??
Fastest cycle for boom elevation/lowering: 1.3 seconds
Maximum lifting force (maximum weight the boom can bear): 12 kg
Maximum digging radius: 65cm
Maximum digging depth: 28.5cm
Maximum digging height: 68cm
Maximum unloading height: 50cm
Rotation angle: Infinite rotation angle
Rotation speed: 12s/min
Charging time: ?¨¹4 hours
If you have any questions or are not sure whether it is the correct item that you want, pls feel free to contact me before purchasing.
