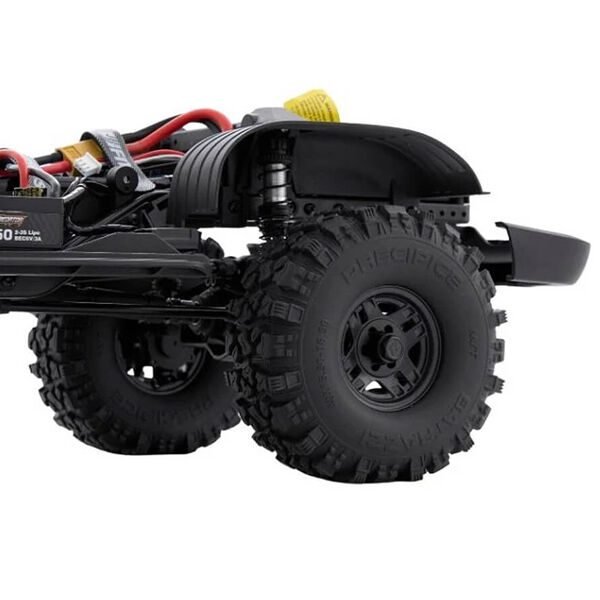

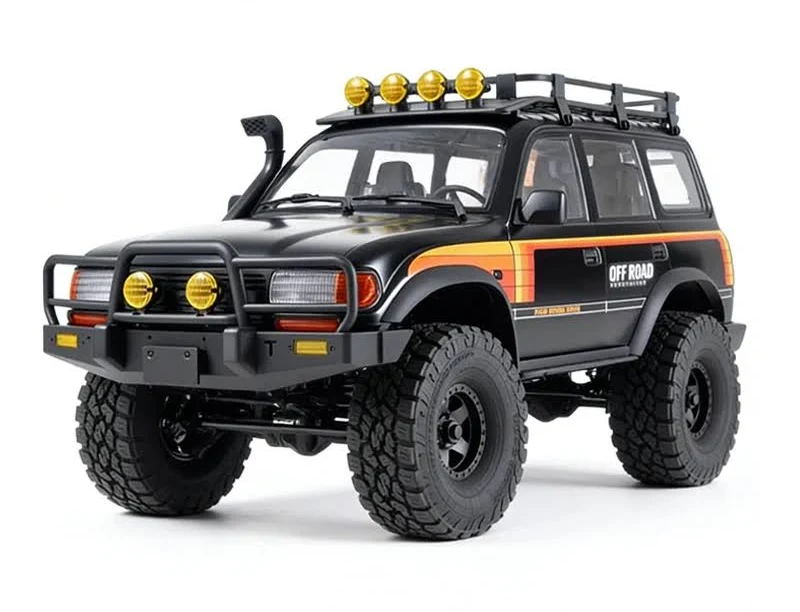

The LC80 is built on the FCX10 P chassis, designed for high performance with metal gears, ball bearings, and four-link suspension. The mid-mounted power unit integrates a 2-speed transmission, transfer case, and brushless motor. The portal axles increase ground clearance for better off-road capabilities. FMS uses high-quality digital servos, a 50A ESC, and a 3541 brushless motor for smooth, precise control, including slow crawling capabilities. Additionally, two-stage shock springs offer enhanced shock absorption, making the LC80 ready for any terrain right out of the box.
Specification:
Product Size: 572*251*288mm (Battery not Included)
Steering Type: Front 2WS
Drive System: 4WD
Waterproof Class: Splash-proof
Brushless Motor: 3541-KV2100
Bearing: Full Bearing
Driving Speed (Low & High Gear): 3MPH / 6.8MPH
Wheel Base: 325mm
Tread: 203mm
Tire Size: D: 120mm, W: 45mm
Wheelhub Size: D: 57.5mm, W: 27.4mm
Wheelhub Adaptor Size: 12mm
Ground Clearance: 76mm
Approach Angle: 51°
Departure Angle: 42°
Breakover Angle: 55°
Maximum Steering Angle: 45°
Maximum Climbing Angle: 60°(artificial turf)
Remote Distance: 150m in clear space
Battery Compartment Size: 140*47*40mm / 170*47*40mm (without receiver)
Play Time: 30min (3S 5000mAh 35C)Motor Gear Pinion: 12T
Motor Gear Pitch: 0.8P
Spur Gear Pinion: 47T
Spur Gear Pitch: 0.8P
Steering Servo: 25KG Metal Gear 25.5Kg.cm*1 (Waterproof)
Shift/Differential Servo: 13g Metal Gear servo*4
What’s in the box:

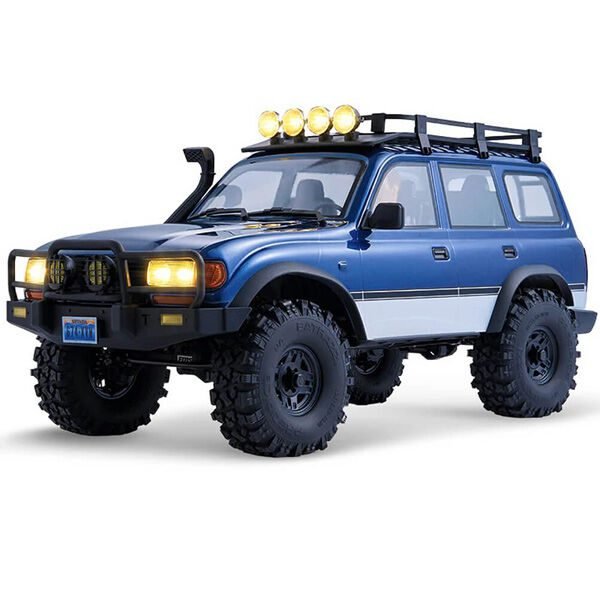

1 x 1:10 FCX10 PRO Brushless Toyota Land Cruiser LC80 RS Time Travel Limited Edition
1 x 2.4GHz MG11 Radio
1 x R11D-BS Receiver (installed)
1 x SL50A 2-3S brushless ESC (installed)
1 x 3541-KV1500 brushless motor (installed)
1 x Product Manual
Need to Complete:
4 x AA Batteries for Transmitter
Battery & Charger for Kit (Recommended 2S 5000mAh, 3S 5000mAh XT60 plug)
